GDAL VRT approach#
This is a notebook demonstrates working with Sentinel-1 RTC imagery that has been processsed on the ASF On-Demand server and downloaded locally.
The access point for data in this notebook is a directory containing un-zipped directories of RTC scenes.
The previous notebook demonstrated an approach using the xarray function open_mfdataset(). Because of the size and some characteristics of the dataset, this approach can be computationally expensive. Another way to approach reading in large amounts of data to avoid these issues is to use the gdal build_vrt command. VRT is short for GDAL Virtual Format. VRT objects create an xml file from a list of geotiff files. The xml contains a mapping of all of the specified raster files so that we essentially have the spatial information that would have been used to create the full data object, and all of the information we need for a clip. VRT objects are able to handle the mismatch of grids within the stack of files, so does not encounter the memory issues that we get when trying the xr.open_mfdataset() approach with dask.
You will see that this approach let’s you read in the data stack with less computational expense, but because of how the data is represented, some metadata is lost and must be re-structured. We will go through those steps here, with explanations of the xarray tools we use along the way.
Learning goals:
add specific xarray methods used
Handling large amounts of locally stored data
organize large set of geotiff files stored locally
reading in large data stacks as xarray objects using gdal build VRT
NOTE: code for submitting HyP jobs still needs to be added back in
Software and setup#
import os
import xarray as xr
import rioxarray as rio
import geopandas as gpd
from datetime import datetime
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import dask
import holoviews as hv
from holoviews import opts
import markdown
import pathlib
from s1_tools import points2coords
instead of re-writing every function that’s used again, going to read them in from s1_tools package after they’ve been defined in a notebook - so next cell should be deleted
# read in PC data (We will use this later for a comparison)
#we'll use this function to get bounding box coordinates from a list of points
def points2coords(pt_ls): #should be [xmin, ymin, xmax, ymax]
coords_ls = [(pt_ls[0], pt_ls[1]), (pt_ls[0], pt_ls[3]),
(pt_ls[2], pt_ls[3]), (pt_ls[2], pt_ls[1]),
(pt_ls[0], pt_ls[1])]
return coords_ls
Set up some string variables for directory paths. We need to pass xr.open_mfdataset() a list of all files to read in. Currently, the file structure is organized so that each scene has its own sub-directory within unzipped_keep. Within each sub-directory are several files - we want to extract the tif files containing RTC imagery for the VV and VH polarizations for each scene. The function extract_tif_fnames() takes a path to the directory containing the sub-directories for all scenes and returns a list of the filenames for VV-polarization tif files and a separate list of filenames for VH-polarization tif files. This is the same as what we used in the previous notebook but with an additional list of names of README files for each Sentinel-1 scene. This will be used to extract important metadata later on.
dir_path_all = '/home/emmamarshall/Desktop/siparcs/asf_rtc_data/unzipped_keep/'
scenes_ls = os.listdir(dir_path_all)
def extract_tif_fnames(scene_path):
''' return a list of files associated with a single S1 scene'''
scene_files_ls = os.listdir(dir_path_all + scene_path)
#make object for readme file
a = [file for file in scene_files_ls if file.endswith('README.md.txt')]
scene_files_vv = [fname for fname in scene_files_ls if fname.endswith('_VH.tif')]
scene_files_vh = [fname for fname in scene_files_ls if fname.endswith('_VV.tif')]
scene_files_ls = [fname for fname in scene_files_ls if fname.endswith('_ls_map.tif')]
#scene_files_rm = [file for file in scene_files_ls if file.endswith('README.md.txt')]
return scene_files_vv, scene_files_vh, scene_files_ls, a
Every scene will have the following four elements:
extract_tif_fnames(scenes_ls[0])
(['S1A_IW_20210821T000314_DVP_RTC30_G_gpuned_748F_VH.tif'],
['S1A_IW_20210821T000314_DVP_RTC30_G_gpuned_748F_VV.tif'],
['S1A_IW_20210821T000314_DVP_RTC30_G_gpuned_748F_ls_map.tif'],
['S1A_IW_20210821T000314_DVP_RTC30_G_gpuned_748F.README.md.txt'])
Now we need to attach the filenames to the full path to each file. We will end up with a list of full paths to VV and VH band imagery, layover shadow map and README files.
fpaths_vv, fpaths_vh, fpaths_ls, fpaths_rm = [],[],[], []
for element in range(len(scenes_ls)):
good_files = extract_tif_fnames(scenes_ls[element])
path_vh = dir_path_all + scenes_ls[element] + '/' + good_files[0][0]
path_vv = dir_path_all + scenes_ls[element] + '/' + good_files[1][0]
path_ls = dir_path_all + scenes_ls[element] + '/' + good_files[2][0]
path_readme = dir_path_all + scenes_ls[element] + '/' + good_files[3][0]
fpaths_vv.append(path_vv)
fpaths_vh.append(path_vh)
fpaths_ls.append(path_ls)
fpaths_rm.append(path_readme)
Extract SLC granule ID from readme#
The original granule ID associated with the Sentinel-1 data product published by the European Space Agency contains metadata that it would be helpful for us to attach to our xarray objects. The README file that is associated with every scene contains the source granule used to generate that product.
The following two functions will be used to extract the source granule ID from each README file then to attatch the ID as a coordinate to the xarray object containing the SAR imagery.
def extract_granule_id(filepath):
''' this function takes a filepath to the readme associated with an S1 scene and returns the source granule id used to generate the RTC imagery'''
md = markdown.Markdown(extensions=['meta'])
data = pathlib.Path(filepath).read_text()
#this text predates granule ID in readme
gran_str = 'The source granule used to generate the products contained in this folder is:\n'
split = data.split(gran_str)
#isolate the granule id
post = split[1][:67]
return post
def make_granule_coord(readme_fpaths_ls):
'''this fn takes a list of the filepaths to every read me, extracts the granule ID,
extracts acq date for each granule ID, organizes this as an array that
can be assigned as a coord to an xr object'''
granule_ls = [extract_granule_id(readme_fpaths_ls[element]) for element in range(len(readme_fpaths_ls))]
acq_date = [pd.to_datetime(granule[17:25]) for granule in granule_ls]
granule_da = xr.DataArray(data = granule_ls,
dims = ['acq_date'],
coords = {'acq_date':acq_date},
attrs = {'description': 'source granule ID for ASF-processed S1 RTC imagery, extracted from README files for each scene'},
name = 'granule_id')
#granule_da = granule_da.sortby(acq_date)
granule_da = granule_da.sortby(granule_da.acq_date)
# granule_tuple = tuple(zip(acq_date, granule_ls))
return granule_da
The object below (granule_da) is a 2-dimensional xr.DataArray that contains an acquisition date coordinate dimension and an array of Sentinel-1 granule IDs. It will be used later when we are merging metadata with our imagery object.
granule_da = make_granule_coord(fpaths_rm)
g = str(granule_da.sel(acq_date='2021-06-02').values)
print(g)
print(g[56:62])
S1A_IW_SLC__1SDV_20210602T120543_20210602T120610_038161_0480FD_893F
0480FD
The top line above is the full granule ID for the Sentinel-1 acquisition from 6/2/2021. You can read about the Sentinel-1 file naming convention here, but for now we are interested in the 6-digit mission data take ID (0480FD in the above cell)
Read in vector data#
probably move this elsewehre in nb
We will use this vector data object later but we will read it in as a geopandas.GeoDataFrame object now. It is called PC aoi because the GeoJSON file was created off of the spatial extent of the SAR dat we will access from Microsoft Planetary Computer, in order to have comparable datasets.
pc_aoi = gpd.read_file('https://github.com/e-marshall/sentinel1_rtc/raw/main/hma_rtc_aoi.geojson')
pc_aoi
| geometry | |
|---|---|
| 0 | POLYGON ((619420.000 3089790.000, 628100.000 3... |
pc_aoi.plot(edgecolor='blue', facecolor='None')
<AxesSubplot:>
Create VRT objects#
We will be using the gdalbuildvrt command. You can find out more about it here. This command can make a VRT that either tiles the listed files into a large mosaic, or places them each in a separate band of the VRT. Because we are dealing with a temporal stack of images we want to use the -separate flag to place each file into a band of the VRT.
Because we are making a VRT from a large number of files, we’ll supply a text file with the full path for each file rather than include these at the end of the command line. We’ll use the same lists of filepaths that we used in the xr.open_mfdataset() approach but this time we will write them to text files that we pass to the gdalbuildvrt command.
with open('/home/emmamarshall/Desktop/data/written_data/s1_vv_fpaths.txt','w') as fp:
for item in fpaths_vv:
#write each item on a new line
fp.write('%s\n' % item)
with open('/home/emmamarshall/Desktop/data/written_data/s1_vh_fpaths.txt','w') as fp:
for item in fpaths_vh:
fp.write('%s\n' % item)
with open('/home/emmamarshall/Desktop/data/written_data/s1_ls_fpaths.txt','w') as fp:
for item in fpaths_ls:
fp.write('%s\n' % item)
fix the next cell use cell magic
Next, we will use gdal command line tools to create the VRT objects:
#`gdalbuildvrt -separate -input_file_list /path/to/my_list.txt vrt_fname.vrt` </br>
#% gdalbuildvrt -separate -input_file_list /home/emmamarshall/Desktop/data/written_data/s1_vv_fpaths.txt s1_stackVV.vrt
#% gdalbuildvrt -separate -input_file_list /home/emmamarshall/Desktop/data/written_data/s1_vh_fpaths.txt s1_stackVH.vrt
#% gdalbuildvrt -separate -input_file_list /home/emmamarshall/Desktop/data/written_data/s1_ls_fpaths.txt s1_stackLS.vrt
Read in the VRT files using the rioxarray function open_rasterio():
vrt_vv = rio.open_rasterio('/home/emmamarshall/Desktop/siparcs/s1_stackVV.vrt', chunks='auto').squeeze()
vrt_vh = rio.open_rasterio('/home/emmamarshall/Desktop/siparcs/s1_stackVH.vrt', chunks='auto').squeeze()
vrt_ls = rio.open_rasterio('/home/emmamarshall/Desktop/siparcs/s1_stackLS.vrt', chunks='auto').squeeze()
Building the VRT object assigns every object in the .txt file to a different band. In doing this, we lost the metadata that is associated with the files. We use a function that is similar (in some ways) to the preprocess call above, to extract metadata from the file name and attach it to the xarray objects that we read in from VRTs.
Extract metadata#
The following function is very similar to the preprocess() function used in the previous notebook. It extracts metadata contained in the filename and organizes it as a dictionary that can be attached to an xarray object.
def extract_metadata_attrs(inputfname):
#vv_fn = da_orig.encoding['source'][113:]
vv_fn = inputfname[113:]
sensor = vv_fn[0:3]
beam_mode = vv_fn[4:6]
acq_date_raw = vv_fn[7:15] #need to parse further
acq_date = pd.to_datetime(acq_date_raw, format='%Y%m%d')
#print(acq_date)
acq_time = vv_fn[15:22]
pol_type = vv_fn[23:25] # dual pol ...
# primary_pol = vv_fn[25:26] # VV ...
orbit_type = vv_fn[25:26]
# orbit_type = vv_fn[26:27] #Precise (P), Restituted (R), or Original Predicted (O)
terrain_correction_pixel_spacing = vv_fn[27:32] #Terrain Correction Pixel Spacing
rtc_alg = vv_fn[33:34] #Software Package Used: GAMMA (G)
output = vv_fn[35] # Gamma-0 (g) or Sigma-0 (s) Output
output_type = vv_fn[36] #Power (p) or Decibel (d) or Amplitude (a) Output
masked = vv_fn[37] #Unmasked (u) or Water Masked (w)
filtered = vv_fn[38] # Not Filtered (n) or Filtered (f)
area = vv_fn[39] # Entire Area (e) or Clipped Area (c)
tbd = vv_fn[40] #Dead Reckoning (d) or DEM Matching (m)
# product_id = vv_fn[56:62] #Product ID
product_id = vv_fn[42:46]
attrs_dict = { 'sensor': sensor,
'beam_mode':beam_mode,
'acquisition_date' : acq_date,
'acquisition_time': acq_time,
'polarisation_type': pol_type,
# 'primary_polarisation': primary_pol,
'orbit_type': orbit_type,
'terrain_correction_pixel_spacing' : terrain_correction_pixel_spacing,
'output_format': output,
'output_type': output_type,
'masked' : masked,
'filtered':filtered,
'area':area,
'product_id': product_id
}
return attrs_dict
The acquisition dates extracted from the VV, VH and Ls geotiff files should be identical, but we read in all three here just to confirm:
acq_dates_vh = [extract_metadata_attrs(fpaths_vh[file])['acquisition_date'].strftime('%m/%d/%Y') for file in range(len(fpaths_vh))]
acq_dates_vv = [extract_metadata_attrs(fpaths_vv[file])['acquisition_date'].strftime('%m/%d/%Y') for file in range(len(fpaths_vv))]
acq_dates_ls = [extract_metadata_attrs(fpaths_ls[file])['acquisition_date'].strftime('%m/%d/%Y') for file in range(len(fpaths_vv))]
Do the same for acquisition time:
import time
acq_times_vh = [time.strptime(extract_metadata_attrs(fpaths_vh[file])['acquisition_time'],'T%H%M%S') for file in range(len(fpaths_vh))]
acq_times_vv = [time.strptime(extract_metadata_attrs(fpaths_vv[file])['acquisition_time'],'T%H%M%S') for file in range(len(fpaths_vv))]
acq_times_ls = [time.strptime(extract_metadata_attrs(fpaths_ls[file])['acquisition_time'],'T%H%M%S') for file in range(len(fpaths_ls))]
#acq_times_vv = [extract_metadata_attrs(fpaths_vv[file])['acquisition_time'].strftime('%hh%mm%ss') for file in range(len(fpaths_vv))]
#acq_times_ls = [extract_metadata_attrs(fpaths_ls[file])['acquisition_time'].strftime('%hh%mm%ss') for file in range(len(fpaths_vv))]
The acquisition dates for VV, VH and LS should be the same. As a check, you can confirm this by creating both objects and comparing them.`
acq_dates_vh == acq_dates_vv == acq_dates_ls
True
acq_times_vh == acq_times_vv == acq_times_ls
True
We can now assign the list of acquisition dates as coordinates to the xarray objects. Use pd.to_datetime() to do this as time-aware coordinate values.
vrt_vv = vrt_vv.assign_coords({'band':pd.to_datetime(acq_dates_vv, format='%m/%d/%Y')})
vrt_vh = vrt_vh.assign_coords({'band':pd.to_datetime(acq_dates_vh, format='%m/%d/%Y')})
vrt_ls = vrt_ls.assign_coords({'band':pd.to_datetime(acq_dates_ls, format='%m/%d/%Y')})
Merge the three xr.DataArrays together into an xr.Dataset.
vrt_merge = xr.Dataset({'vv':vrt_vv,
'vh':vrt_vh,
'ls':vrt_ls}).rename_dims({'band':'acq_date'}).rename({'band':'acq_date'})
vrt_merge
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 17452, y: 13379)
Coordinates:
* acq_date (acq_date) datetime64[ns] 2021-08-21 2022-01-16 ... 2022-04-06
* x (x) float64 3.833e+05 3.833e+05 ... 9.068e+05 9.068e+05
* y (y) float64 3.309e+06 3.309e+06 ... 2.907e+06 2.907e+06
spatial_ref int64 0
Data variables:
vv (acq_date, y, x) float32 dask.array<chunksize=(1, 5760, 5760), meta=np.ndarray>
vh (acq_date, y, x) float32 dask.array<chunksize=(1, 5760, 5760), meta=np.ndarray>
ls (acq_date, y, x) uint8 dask.array<chunksize=(1, 11520, 11520), meta=np.ndarray>The files are not organized by time in the directory, so the files are not read in in temporal order when we create the VRT and xr.Dataset objects. Once we have attached the temporal metadata to the xarray objects composed from VRT, we can use .sortby() to organize the dataset along time time dimension:
vrt_merge = vrt_merge.sortby(vrt_merge.acq_date)
vrt_merge
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 17452, y: 13379)
Coordinates:
* acq_date (acq_date) datetime64[ns] 2021-05-02 2021-05-05 ... 2022-05-21
* x (x) float64 3.833e+05 3.833e+05 ... 9.068e+05 9.068e+05
* y (y) float64 3.309e+06 3.309e+06 ... 2.907e+06 2.907e+06
spatial_ref int64 0
Data variables:
vv (acq_date, y, x) float32 dask.array<chunksize=(1, 5760, 5760), meta=np.ndarray>
vh (acq_date, y, x) float32 dask.array<chunksize=(1, 5760, 5760), meta=np.ndarray>
ls (acq_date, y, x) uint8 dask.array<chunksize=(1, 11520, 11520), meta=np.ndarray>You can see that the chunking here is much more reasonable, with 1236 total chunks compared to 103 or 317,240 chunks from the open_mfdataset() approach.
Clip by vector data#
Clip the full object by the same AOI as above. Just as in the last notebook, we will use the rioxarray.clip() method.
vrt_clip = vrt_merge.rio.clip(pc_aoi.geometry, pc_aoi.crs)
vrt_clip
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 290, y: 396)
Coordinates:
* acq_date (acq_date) datetime64[ns] 2021-05-02 2021-05-05 ... 2022-05-21
* x (x) float64 6.194e+05 6.195e+05 ... 6.281e+05 6.281e+05
* y (y) float64 3.102e+06 3.102e+06 3.102e+06 ... 3.09e+06 3.09e+06
spatial_ref int64 0
Data variables:
vv (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
vh (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
ls (acq_date, y, x) uint8 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>Merge metadata#
We had important metadata stored in the individual filenames of each Sentinel-1 scene that was dropped when we converted them to VRT objects. Let’s use the original filenames to extract the metadata and assign the data as coordinates of our formatted xarray object:
meta_attrs_ls_vv = [extract_metadata_attrs(fpaths_vv[file]) for file in range(len(fpaths_vv))]
def assign_metadata_as_coords(input_ls, input_xr):
meta_dict = input_ls[0]
ticker = 0
attrs_dicts, keys_ls = [],[]
for key in meta_dict:
print(key)
if key == 'acquisition_date':
pass
else:
key_dict = {f'{key}':[input_ls[ticker][key] for ticker in range(len(input_ls))]}
ticker+=1
attrs_dicts.append(key_dict)
keys_ls.append(key)
full_dict = dict(zip(keys_ls, attrs_dicts))
for key in full_dict.keys():
coord = list(full_dict[key].items())[0]
input_xr = input_xr.assign_coords({f'{key}':coord})
return input_xr.squeeze()
vrt_full = assign_metadata_as_coords(meta_attrs_ls_vv, vrt_clip)
#vrt_full['granule_id'] = granule_da
#vrt_full = vrt_full.set_coords({'granule_id': vrt_full.granule_id})
vrt_full = xr.combine_by_coords([vrt_full, granule_da])
sensor
beam_mode
acquisition_date
acquisition_time
polarisation_type
orbit_type
terrain_correction_pixel_spacing
output_format
output_type
masked
filtered
area
product_id
vrt_full
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 290, y: 396,
sensor: 103, beam_mode: 103,
acquisition_time: 103,
polarisation_type: 103, orbit_type: 103,
terrain_correction_pixel_spacing: 103,
output_format: 103, output_type: 103,
masked: 103, filtered: 103, area: 103,
product_id: 103)
Coordinates: (12/16)
* acq_date (acq_date) datetime64[ns] 2021-05-02 .....
* x (x) float64 6.194e+05 ... 6.281e+05
* y (y) float64 3.102e+06 ... 3.09e+06
spatial_ref int64 0
* sensor (sensor) <U3 'S1A' 'S1A' ... 'S1A' 'S1A'
* beam_mode (beam_mode) <U2 'IW' 'IW' ... 'IW' 'IW'
... ...
* output_format (output_format) <U1 'g' 'g' ... 'g' 'g'
* output_type (output_type) <U1 'p' 'p' 'p' ... 'p' 'p'
* masked (masked) <U1 'u' 'u' 'u' ... 'u' 'u' 'u'
* filtered (filtered) <U1 'n' 'n' 'n' ... 'n' 'n' 'n'
* area (area) <U1 'e' 'e' 'e' 'e' ... 'e' 'e' 'e'
* product_id (product_id) <U4 '748F' '0D1E' ... 'BD36'
Data variables:
granule_id (acq_date) <U67 'S1A_IW_SLC__1SDV_20210...
vv (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
vh (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
ls (acq_date, y, x) uint8 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>vrt_full = xr.combine_by_coords([vrt_full, granule_da]).assign_coords({'granule_id':vrt_full.granule_id})
vrt_full
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 290, y: 396,
sensor: 103, beam_mode: 103,
acquisition_time: 103,
polarisation_type: 103, orbit_type: 103,
terrain_correction_pixel_spacing: 103,
output_format: 103, output_type: 103,
masked: 103, filtered: 103, area: 103,
product_id: 103)
Coordinates: (12/17)
* acq_date (acq_date) datetime64[ns] 2021-05-02 .....
granule_id (acq_date) <U67 'S1A_IW_SLC__1SDV_20210...
* x (x) float64 6.194e+05 ... 6.281e+05
* y (y) float64 3.102e+06 ... 3.09e+06
spatial_ref int64 0
* sensor (sensor) <U3 'S1A' 'S1A' ... 'S1A' 'S1A'
... ...
* output_format (output_format) <U1 'g' 'g' ... 'g' 'g'
* output_type (output_type) <U1 'p' 'p' 'p' ... 'p' 'p'
* masked (masked) <U1 'u' 'u' 'u' ... 'u' 'u' 'u'
* filtered (filtered) <U1 'n' 'n' 'n' ... 'n' 'n' 'n'
* area (area) <U1 'e' 'e' 'e' 'e' ... 'e' 'e' 'e'
* product_id (product_id) <U4 '748F' '0D1E' ... 'BD36'
Data variables:
vv (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
vh (acq_date, y, x) float32 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>
ls (acq_date, y, x) uint8 dask.array<chunksize=(1, 396, 290), meta=np.ndarray>Format acquisition time#
Acquisition time comes as a string with form THHMMSS. We would like the acquisition_time coordinate to be time aware. To do this, we’ll use the np.vectorize() function to apply the string to datetime64 conversion to every element of the acq_time coordinate array. (better way to do this?)
def str_to_time(input_str):
#print(input_str)
hour = input_str[1:3]
minute = input_str[3:5]
sec = input_str[5:7]
time = hour + ':' + minute + ':' + sec
time_td = pd.to_datetime(time).to_datetime64()
return time_td
def format_acq_time_coord(input_xr):
time_str = np.vectorize(str_to_time)
acq_times_format = time_str(input_xr['acquisition_time'].data)
input_xr['acquisition_time'] = acq_times_format
return input_xr
vrt_full = format_acq_time_coord(vrt_full)
You can see that all of the acquisition times are roughly either around 00:00 or 12:00 (check that these are UTC? what local time? 6 am / 6pm ish?). We can use the different times of the acquistitions to group the data by orbital direction ie. categorize acquisitions as ascending or descending passes
Add orbital direction coord#
assign coord thats acq_time.dt.hour
use np where to translate hour to asc or desc
assign coord for orbital pass
drop dims for acq time, hour
setting dtype = datetime64 f up the date??
vrt_full.acquisition_time.dt.hour
<xarray.DataArray 'hour' (acquisition_time: 103)>
array([ 0, 12, 12, 12, 12, 12, 12, 0, 0, 12, 12, 0, 12, 0, 12, 0, 12,
12, 0, 12, 12, 12, 0, 0, 12, 12, 12, 0, 0, 12, 0, 12, 12, 12,
12, 12, 0, 0, 12, 0, 12, 12, 12, 12, 12, 12, 12, 0, 12, 12, 12,
12, 0, 12, 0, 12, 12, 12, 12, 12, 12, 0, 12, 12, 0, 12, 12, 12,
12, 12, 0, 12, 12, 0, 0, 12, 12, 12, 12, 12, 12, 0, 12, 12, 0,
0, 0, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 0, 0, 0, 12, 12,
0])
Coordinates:
spatial_ref int64 0
* acquisition_time (acquisition_time) datetime64[ns] 2022-09-26T00:03:14 ....Note
need to get orbital_dir (or acq_hour) as a dimension rather than a non-dimensional coord
def add_orbital_dir_coord(input_xr):
input_xr = input_xr.expand_dims('orbital_dir')
input_xr = input_xr.assign_coords({'acq_hour':input_xr.acquisition_time.dt.hour})
input_xr = input_xr.assign_coords(orbital_dir = xr.where(input_xr.acq_hour == 0, 'asc','desc'))
#input_xr = input_xr.expand_dims('orbital_pass')
#xr.where(input_xr.acq_hour == 0, 'asc', 'desc')})
# input_xr = input_xr.assign_coords({'orbital_pass':xr.where(input_xr.acq_hour == 0, 'asc', 'desc')})
#input_xr = input_xr.expand_dims({'pass':len(input_xr.orbital_pass)})
# input_xr = input_xr.drop_dims(['acquisition_time'])
#input_xr = input_xr.swap_dims({'orbital_pass':'orbital_dir'})
return input_xr
vrt_full = add_orbital_dir_coord(vrt_full)
vrt_full
<xarray.Dataset>
Dimensions: (acq_date: 103, x: 290, y: 396,
orbital_dir: 1, sensor: 103,
beam_mode: 103, acquisition_time: 103,
polarisation_type: 103, orbit_type: 103,
terrain_correction_pixel_spacing: 103,
output_format: 103, output_type: 103,
masked: 103, filtered: 103, area: 103,
product_id: 103)
Coordinates: (12/19)
* acq_date (acq_date) datetime64[ns] 2021-05-02 .....
granule_id (acq_date) <U67 'S1A_IW_SLC__1SDV_20210...
* x (x) float64 6.194e+05 ... 6.281e+05
* y (y) float64 3.102e+06 ... 3.09e+06
spatial_ref int64 0
* sensor (sensor) <U3 'S1A' 'S1A' ... 'S1A' 'S1A'
... ...
* masked (masked) <U1 'u' 'u' 'u' ... 'u' 'u' 'u'
* filtered (filtered) <U1 'n' 'n' 'n' ... 'n' 'n' 'n'
* area (area) <U1 'e' 'e' 'e' 'e' ... 'e' 'e' 'e'
* product_id (product_id) <U4 '748F' '0D1E' ... 'BD36'
acq_hour (acquisition_time) int64 0 12 12 ... 12 0
orbital_dir (acquisition_time) <U4 'asc' ... 'asc'
Data variables:
vv (orbital_dir, acq_date, y, x) float32 dask.array<chunksize=(1, 1, 396, 290), meta=np.ndarray>
vh (orbital_dir, acq_date, y, x) float32 dask.array<chunksize=(1, 1, 396, 290), meta=np.ndarray>
ls (orbital_dir, acq_date, y, x) uint8 dask.array<chunksize=(1, 1, 396, 290), meta=np.ndarray>Handle nodata values#
Another important difference between the xr.open_mfdataset() and VRT approaches is the handling of the nodata values. In the object built using xr.open_mfdataset(), nodata values are set to NaN while building the object from VRT files converts nodata values to zeros. This can cause a whole stream of problems later on so it is best to convert them to NaNs now. You can check the handling of nodata values in your dataset by using the rio.nodata accessor (shown below) which you can read about here.
vrt_full.vv.isel(acq_date=0).rio.nodata
0.0
^ We want this to be a nan.
Using rio.write_nodata():
vrt_new = vrt_full.rio.write_nodata(-9999, inplace=True)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Input In [73], in <cell line: 1>()
----> 1 vrt_new = vrt_full.rio.write_nodata(-9999, inplace=True)
AttributeError: 'RasterDataset' object has no attribute 'write_nodata'
Note
note sure why that’s not workiing rn
So using xr.Dataset.where() (don’t think this will actually overwrite the official nodata value, but it should replace the zeros:
vrt_full = vrt_full.where(vrt_full.vv != 0., np.nan, drop=False)
Now we have all of the same metadata attached to our xarray datacube of Sentinel-1 RTC imagery that we had using the xr.open_mfdataset() approach, but we’ve done this with much less computational expense and a chunking strategy that is more appropriate for the nature of the dataset.
We’ll store this object to use it in a later notebook.
%store vrt_full
Stored 'vrt_full' (Dataset)
def power_to_db(input_arr):
return (10*np.log10(np.abs(input_arr)))
fig, ax = plt.subplots(figsize=(12,8))

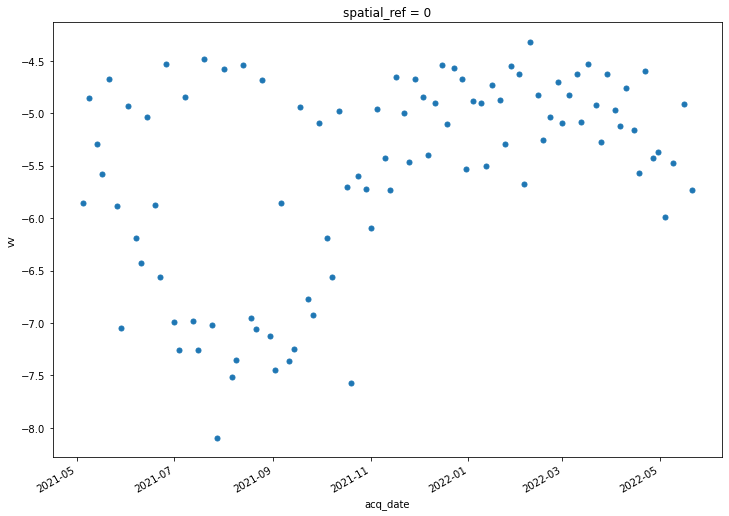

power_to_db(vrt_full.vv.mean(dim=['x','y'])).plot(ax=ax, marker='o', linestyle='None', markersize=5)
[<matplotlib.lines.Line2D at 0x7f85f774b790>]
power_to_db(vrt_full.vv.isel(time=1)).plot(cmap=plt.cm.Greys_r);
/home/emmamarshall/miniconda3/envs/sentinel/lib/python3.10/site-packages/dask/core.py:119: RuntimeWarning: divide by zero encountered in log10
return func(*(_execute_task(a, cache) for a in args))
