Microsoft Planetary Computer Sentinel-1 RTC Imagery#

This book will demonstrate how to access radiometrically terrain corrected Sentinel-1 imagery from Microsoft Planetary Computer using stackstac. STAC stands for spatio-temporal asset catalog, it is a common framework to describe geospatial information and a way for data providers, developers and users to work and communicate efficiently. You can read more about STAC here and checkout more useful tutorials for working with STAC data.

Learning goals#

  • introduction to working with STAC data

  • using pystac to query cloud-hosted datasets, observe metadata

  • using stackstac to read cloud-hosted data as xarray objects

  • using xarray to manipulate and organize Sentinel-1 SAR data

  • performing grouping and reductions on xarrray objects

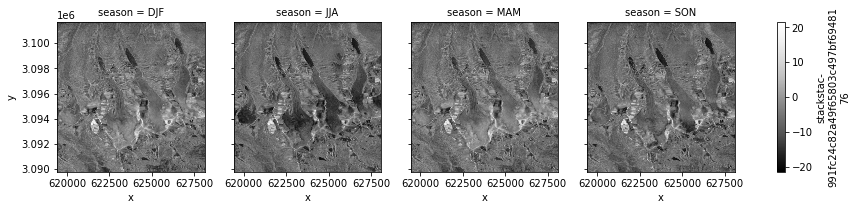

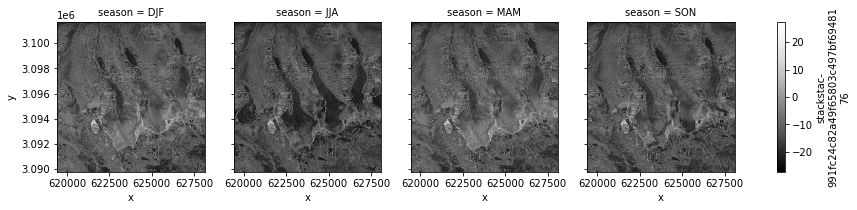

  • visualizing xarray objects using FacetGrid

import xarray as xr
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import requests
import rich.table
import planetary_computer
from pystac_client import Client
#import cartopy
from shapely.geometry import Polygon
import rioxarray as rio
import pystac

from IPython.display import Image

We will use the pystac_client package to interact with and query the Microsoft Planetary Computer Sentinel-1 RTC dataset. In the cell below, we will create an object called catalog by calling the .open() method of the Client class. This is establishing a connection with the hosted data at the url provided. Explore the catalog object. You

STAC items#

catalog = Client.open('https://planetarycomputer.microsoft.com/api/stac/v1')
catalog

Now we will define some parameters to help us query the data catalog for the specific collection, time range and geographic area of interest. The function points2coords() just helps us to format coordinates for areas of interest.

#we'll use this function to get bounding box coordinates from a list of points
def points2coords(pt_ls): #should be [xmin, ymin, xmax, ymax]

    coords_ls = [(pt_ls[0], pt_ls[1]), (pt_ls[0], pt_ls[3]),
                 (pt_ls[2], pt_ls[3]), (pt_ls[2], pt_ls[1]),
                 (pt_ls[0], pt_ls[1])]
    return coords_ls

In the cell below we specify the time range we’re intereste in as well as the geographic area of interest.

time_range = '2021-01-01/2022-08-01'
bbox = [88.214935, 27.92767, 88.302,  28.034]

bbox_coords = points2coords(bbox)
bbox_coords

[(88.214935, 27.92767),
 (88.214935, 28.034),
 (88.302, 28.034),
 (88.302, 27.92767),
 (88.214935, 27.92767)]

Now we will search the catalog for entries that match our criteria for collection (Sentinel-1 RTC), bbox (our AOI) and datetime (our specified time range):

search = catalog.search(collections=["sentinel-1-rtc"], bbox=bbox, datetime=time_range)
items = search.get_all_items()
len(items)

100

We’ve created a few more instances of pystac_client classes. Check out the object types below to better familiarize yourself with the pystac package

print(type(catalog))
print(type(search))
print(type(items))

<class 'pystac_client.client.Client'>
<class 'pystac_client.item_search.ItemSearch'>
<class 'pystac.item_collection.ItemCollection'>

You can see that items is an instance of the class ItemCollection, and we can explore it via the embedded html interface (is that right?)

items

To make it easier to work with, we can convert the items object to a dictionary, and from there, convert it to a geopandas.GeoDataFrame. You can see that the metadata from within each item of the ItemCollection object is present in the GeoDataFrame but its easier to scan and organize this way.

df = gpd.GeoDataFrame.from_features(items.to_dict(), crs='epsg:4326')
df.head(5)
geometry datetime platform s1:shape proj:bbox proj:epsg proj:shape end_datetime constellation s1:resolution ... sar:center_frequency sar:resolution_range s1:product_timeliness sar:resolution_azimuth sar:pixel_spacing_range sar:observation_direction sar:pixel_spacing_azimuth sar:looks_equivalent_number s1:instrument_configuration_ID sat:platform_international_designator
0 POLYGON ((86.20612 27.84414, 86.21011 27.78327... 2022-08-01T12:14:14.610123Z SENTINEL-1A [28151, 21598] [421830.0, 2916390.0, 697320.0, 3130510.0] 32645 [28151, 21598] 2022-08-01 12:14:27.109058+00:00 Sentinel-1 high ... 5.405 20 Fast-24h 22 10 right 10 4.4 7 2014-016A
1 POLYGON ((89.98012 27.01219, 90.99394 27.17292... 2022-07-27T12:06:06.953202Z SENTINEL-1A [28423, 21970] [619480.0, 2960660.0, 895840.0, 3178430.0] 32645 [28423, 21970] 2022-07-27 12:06:19.452211+00:00 Sentinel-1 high ... 5.405 20 Fast-24h 22 10 right 10 4.4 7 2014-016A
2 POLYGON ((89.80442 27.02311, 89.82929 27.27473... 2022-07-23T00:03:32.650978Z SENTINEL-1A [27531, 21084] [530210.0, 2980900.0, 798705.0, 3190400.0] 32645 [27531, 21084] 2022-07-23 00:03:45.150333+00:00 Sentinel-1 high ... 5.405 20 Fast-24h 22 10 right 10 4.4 7 2014-016A
3 POLYGON ((86.20591 27.84405, 86.21002 27.78237... 2022-07-20T12:14:13.801000Z SENTINEL-1A [28149, 21598] [421810.0, 2916380.0, 697280.0, 3130510.0] 32645 [28149, 21598] 2022-07-20 12:14:26.299940+00:00 Sentinel-1 high ... 5.405 20 Fast-24h 22 10 right 10 4.4 7 2014-016A
4 POLYGON ((89.98022 27.01218, 90.99394 27.17283... 2022-07-15T12:06:06.242032Z SENTINEL-1A [28422, 21971] [619490.0, 2960670.0, 895840.0, 3178430.0] 32645 [28422, 21971] 2022-07-15 12:06:18.741751+00:00 Sentinel-1 high ... 5.405 20 Fast-24h 22 10 right 10 4.4 7 2014-016A

5 rows × 36 columns

df.columns

Index(['geometry', 'datetime', 'platform', 's1:shape', 'proj:bbox',
       'proj:epsg', 'proj:shape', 'end_datetime', 'constellation',
       's1:resolution', 'proj:transform', 's1:datatake_id', 'start_datetime',
       's1:orbit_source', 's1:slice_number', 's1:total_slices',
       'sar:looks_range', 'sat:orbit_state', 'sar:product_type',
       'sar:looks_azimuth', 'sar:polarizations', 'sar:frequency_band',
       'sat:absolute_orbit', 'sat:relative_orbit', 's1:processing_level',
       'sar:instrument_mode', 'sar:center_frequency', 'sar:resolution_range',
       's1:product_timeliness', 'sar:resolution_azimuth',
       'sar:pixel_spacing_range', 'sar:observation_direction',
       'sar:pixel_spacing_azimuth', 'sar:looks_equivalent_number',
       's1:instrument_configuration_ID',
       'sat:platform_international_designator'],
      dtype='object')

Now we want to check out a rendered preview of an individual item from the ItemCollection object. We do this by calling the assets accessor, and supplying the HREF of the rendered preview key.

Image(url=items[0].assets["rendered_preview"].href)

We can construct a table with metadata for a single scene (ie. a single element of the list items)

table = rich.table.Table('key','value')
for k,v in sorted(items[0].properties.items()):
    table.add_row(k, str(v))
table

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ key                                   ┃ value                                                       ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│ constellation                         │ Sentinel-1                                                  │
│ datetime                              │ 2022-08-01T12:14:14.610123Z                                 │
│ end_datetime                          │ 2022-08-01 12:14:27.109058+00:00                            │
│ platform                              │ SENTINEL-1A                                                 │
│ proj:bbox                             │ [421830.0, 2916390.0, 697320.0, 3130510.0]                  │
│ proj:epsg                             │ 32645                                                       │
│ proj:shape                            │ [28151, 21598]                                              │
│ proj:transform                        │ [10.0, 0.0, 421830.0, 0.0, -10.0, 3132220.0, 0.0, 0.0, 1.0] │
│ s1:datatake_id                        │ 346937                                                      │
│ s1:instrument_configuration_ID        │ 7                                                           │
│ s1:orbit_source                       │ RESORB                                                      │
│ s1:processing_level                   │ 1                                                           │
│ s1:product_timeliness                 │ Fast-24h                                                    │
│ s1:resolution                         │ high                                                        │
│ s1:shape                              │ [28151, 21598]                                              │
│ s1:slice_number                       │ 6                                                           │
│ s1:total_slices                       │ 20                                                          │
│ sar:center_frequency                  │ 5.405                                                       │
│ sar:frequency_band                    │ C                                                           │
│ sar:instrument_mode                   │ IW                                                          │
│ sar:looks_azimuth                     │ 1                                                           │
│ sar:looks_equivalent_number           │ 4.4                                                         │
│ sar:looks_range                       │ 5                                                           │
│ sar:observation_direction             │ right                                                       │
│ sar:pixel_spacing_azimuth             │ 10                                                          │
│ sar:pixel_spacing_range               │ 10                                                          │
│ sar:polarizations                     │ ['VV', 'VH']                                                │
│ sar:product_type                      │ GRD                                                         │
│ sar:resolution_azimuth                │ 22                                                          │
│ sar:resolution_range                  │ 20                                                          │
│ sat:absolute_orbit                    │ 44359                                                       │
│ sat:orbit_state                       │ ascending                                                   │
│ sat:platform_international_designator │ 2014-016A                                                   │
│ sat:relative_orbit                    │ 12                                                          │
│ start_datetime                        │ 2022-08-01 12:14:02.111187+00:00                            │
└───────────────────────────────────────┴─────────────────────────────────────────────────────────────┘

We can also explore the object metadata outside of the table. Try typing .assets, .links, .STAC_extensions and .properties onto the term below. You can query the object programmatically for the same metadata stored in the table using dictionary syntax on the properties accessor (<– is that the write word here?).

items[0]
#items[0].assets
#items[0].links

items[0].properties

{'datetime': '2022-08-01T12:14:14.610123Z',
 'platform': 'SENTINEL-1A',
 's1:shape': [28151, 21598],
 'proj:bbox': [421830.0, 2916390.0, 697320.0, 3130510.0],
 'proj:epsg': 32645,
 'proj:shape': [28151, 21598],
 'end_datetime': '2022-08-01 12:14:27.109058+00:00',
 'constellation': 'Sentinel-1',
 's1:resolution': 'high',
 'proj:transform': [10.0, 0.0, 421830.0, 0.0, -10.0, 3132220.0, 0.0, 0.0, 1.0],
 's1:datatake_id': '346937',
 'start_datetime': '2022-08-01 12:14:02.111187+00:00',
 's1:orbit_source': 'RESORB',
 's1:slice_number': '6',
 's1:total_slices': '20',
 'sar:looks_range': 5,
 'sat:orbit_state': 'ascending',
 'sar:product_type': 'GRD',
 'sar:looks_azimuth': 1,
 'sar:polarizations': ['VV', 'VH'],
 'sar:frequency_band': 'C',
 'sat:absolute_orbit': 44359,
 'sat:relative_orbit': 12,
 's1:processing_level': '1',
 'sar:instrument_mode': 'IW',
 'sar:center_frequency': 5.405,
 'sar:resolution_range': 20,
 's1:product_timeliness': 'Fast-24h',
 'sar:resolution_azimuth': 22,
 'sar:pixel_spacing_range': 10,
 'sar:observation_direction': 'right',
 'sar:pixel_spacing_azimuth': 10,
 'sar:looks_equivalent_number': 4.4,
 's1:instrument_configuration_ID': '7',
 'sat:platform_international_designator': '2014-016A'}

Now that we’e explored the items that fit our query of the dataset and seen the metadata, let’s read the data in using xarray.

We will now use dask.distributed to manage our tasks. Confusingly, we will use the dask.distributed class Client to interact with the cluster.

Reading data using xarray#

from distributed import Client

client = Client(processes=False)
print(client.dashboard_link)

http://192.168.86.35:8787/status

Click the link above to open the dask dashboard for the client we’ve just instantiated.

Now that we have queried the data that is available from Microsoft Planetary Computer and inspected the metadata using pystac, we will use stackstac to read the data into our notebook as an xarray object. Calling stackstac.stack() produces a lazy xarray.DataArray with dask integration out of a STAC collection object.

type(items)

pystac.item_collection.ItemCollection

In the code cell below, you can see that we pass the object items, a pystac.ItemCollection to the stackstac.stack() method. The wrapper planetary_computer.sign() uses Planetary Computer subscription key credentials to access the data. stackstac passes the metadata from the STAC collection into the xarray object as coordinates allowing you to further organize and manipulate the object to fit your purposes. stackstac can also read the data in according to parameters passed during the stack() call. In the code cell below we pass parameters for bounding box and coordinate reference system. To specify the resolution as something other than the resolution at which its stored, pass a resolution = argument.

import stackstac
import os

da = stackstac.stack(
    planetary_computer.sign(items), bounds_latlon=bbox, epsg=32645
)

da

<xarray.DataArray 'stackstac-52d24610e3fcd4a700f0923d3d63ddb9' (time: 100,
                                                                band: 2,
                                                                y: 1188, x: 869)>
dask.array<fetch_raster_window, shape=(100, 2, 1188, 869), dtype=float64, chunksize=(1, 1, 1024, 869), chunktype=numpy.ndarray>
Coordinates: (12/39)
  * time                                   (time) datetime64[ns] 2021-06-02T1...
    id                                     (time) <U66 'S1A_IW_GRDH_1SDV_2021...
  * band                                   (band) <U2 'vh' 'vv'
  * x                                      (x) float64 6.194e+05 ... 6.281e+05
  * y                                      (y) float64 3.102e+06 ... 3.09e+06
    end_datetime                           (time) <U32 '2021-06-02 12:06:09.9...
    ...                                     ...
    s1:slice_number                        (time) <U2 '6' '6' '12' ... '6' '6'
    sar:looks_equivalent_number            float64 4.4
    title                                  (band) <U41 'VH: vertical transmit...
    description                            (band) <U173 'Terrain-corrected ga...
    raster:bands                           object {'nodata': -32768, 'data_ty...
    epsg                                   int64 32645
Attributes:
    spec:        RasterSpec(epsg=32645, bounds=(619420.0, 3089780.0, 628110.0...
    crs:         epsg:32645
    transform:   | 10.00, 0.00, 619420.00|\n| 0.00,-10.00, 3101660.00|\n| 0.0...
    resolution:  10.0

Retrieve source granule ID#

It will be useful to have the granule ID for the original SAR acquisition and GRD file used to generate the RTC image. The following code demonstrates retrieving the source granule ID from the STAC metadata and adding it as a variable (coorindate?) to the xarray object containing the RTC imagery.

stac_item = pystac.read_file('https://planetarycomputer.microsoft.com/api/stac/v1/collections/sentinel-1-rtc/items/S1A_IW_GRDH_1SDV_20210602T120544_20210602T120609_038161_0480FD_rtc')

def extract_source_granule_pc(rtc_id):

    base_url = 'https://planetarycomputer.microsoft.com/api/stac/v1/collections/sentinel-1-rtc/items/'
    full_url = base_url + str(rtc_id)
    stac_item = pystac.read_file(full_url)
    source_granule = stac_item.links[5].target[-62:]
    return source_granule

granule_ls = [extract_source_granule_pc(da.isel(time=t).id.values) for t in range(len(da.time))]

def make_granule_coord_pc(granule_ls):
    '''this fn takes a list of granule IDs, extracts acq date for each granule, organizes this as an array that can be assigned as a coord to an xr obj'''

    acq_date = [pd.to_datetime(granule[17:25]) for granule in granule_ls]

    granule_da = xr.DataArray(data = granule_ls,
                              dims = ['time'],
                              coords = {'time':acq_date},
                             attrs = {'description': 'source granule ID S1 GRD files used to process PC RTC images, extracted from STAC metadata'},
                             name='granule_id')
   # granule_tuple = tuple(zip(acq_date, granule_ls))

    return granule_da

granule_coord = make_granule_coord_pc(granule_ls)
granule_coord

<xarray.DataArray 'granule_id' (time: 100)>
array(['S1A_IW_GRDH_1SDV_20210602T120544_20210602T120609_038161_0480FD',
       'S1A_IW_GRDH_1SDV_20210607T121352_20210607T121417_038234_048318',
       'S1A_IW_GRDH_1SDV_20210610T000311_20210610T000336_038270_04841E',
       'S1A_IW_GRDH_1SDV_20210614T120545_20210614T120610_038336_04862F',
       'S1A_IW_GRDH_1SDV_20210619T121353_20210619T121418_038409_04884C',
       'S1A_IW_GRDH_1SDV_20210622T000312_20210622T000337_038445_04895A',
       'S1A_IW_GRDH_1SDV_20210626T120546_20210626T120611_038511_048B6C',
       'S1A_IW_GRDH_1SDV_20210701T121354_20210701T121419_038584_048D87',
       'S1A_IW_GRDH_1SDV_20210704T000312_20210704T000337_038620_048E99',
       'S1A_IW_GRDH_1SDV_20210708T120547_20210708T120612_038686_0490AD',
       'S1A_IW_GRDH_1SDV_20210713T121354_20210713T121419_038759_0492D4',
       'S1A_IW_GRDH_1SDV_20210716T000313_20210716T000338_038795_0493DB',
       'S1A_IW_GRDH_1SDV_20210720T120547_20210720T120612_038861_0495EC',
       'S1A_IW_GRDH_1SDV_20210725T121355_20210725T121420_038934_04980F',
       'S1A_IW_GRDH_1SDV_20210728T000314_20210728T000339_038970_04991E',
       'S1A_IW_GRDH_1SDV_20210801T120548_20210801T120613_039036_049B1F',
       'S1A_IW_GRDH_1SDV_20210806T121356_20210806T121421_039109_049D70',
       'S1A_IW_GRDH_1SDV_20210809T000314_20210809T000339_039145_049EAC',
       'S1A_IW_GRDH_1SDV_20210813T120549_20210813T120614_039211_04A0FF',
       'S1A_IW_GRDH_1SDV_20210818T121356_20210818T121421_039284_04A383',
...
       'S1A_IW_GRDH_1SDV_20220509T121356_20220509T121421_043134_0526C4',
       'S1A_IW_GRDH_1SDV_20220516T120549_20220516T120614_043236_0529DD',
       'S1A_IW_GRDH_1SDV_20220521T121357_20220521T121422_043309_052C00',
       'S1A_IW_GRDH_1SDV_20220528T120550_20220528T120615_043411_052F0A',
       'S1A_IW_GRDH_1SDV_20220602T121358_20220602T121423_043484_053126',
       'S1A_IW_GRDH_1SDV_20220605T000317_20220605T000342_043520_05323C',
       'S1A_IW_GRDH_1SDV_20220609T120551_20220609T120616_043586_053436',
       'S1A_IW_GRDH_1SDV_20220614T121359_20220614T121424_043659_05365F',
       'S1A_IW_GRDH_1SDV_20220617T000317_20220617T000342_043695_053770',
       'S1A_IW_GRDH_1SDV_20220621T120552_20220621T120617_043761_053978',
       'S1A_IW_GRDH_1SDV_20220626T121359_20220626T121424_043834_053BA2',
       'S1A_IW_GRDH_1SDV_20220703T120553_20220703T120618_043936_053EA7',
       'S1A_IW_GRDH_1SDV_20220708T121400_20220708T121425_044009_0540D0',
       'S1A_IW_GRDH_1SDV_20220711T000319_20220711T000344_044045_0541E4',
       'S1A_IW_GRDH_1SDV_20220715T120553_20220715T120618_044111_0543E4',
       'S1A_IW_GRDH_1SDV_20220720T121401_20220720T121426_044184_054615',
       'S1A_IW_GRDH_1SDV_20220723T000320_20220723T000345_044220_05471E',
       'S1A_IW_GRDH_1SDV_20220727T120554_20220727T120619_044286_05491D',
       'S1A_IW_GRDH_1SDV_20220801T121402_20220801T121427_044359_054B39'],
      dtype='<U62')
Coordinates:
  * time     (time) datetime64[ns] 2021-06-02 2021-06-07 ... 2022-08-01
Attributes:
    description:  source granule ID S1 GRD files used to process PC RTC image...

The granule_coord object is a 1-dimensional xarray.DataArray containing the source granule IDs for the original GRD files. The values of the time coordinate align with the time coordinate of the data object pc, allowing us to use the xarray.combine_by_coords() function to merge the two into one object.

First, check the dates between the two coordinates are the same (they should be):

for element in range(len(list(da.time)))[:5]:
    print(list(da.time.values)[element])
    print(list(granule_coord.time.values)[element])
    print('')
print(len(da.time))
print(len(granule_coord.time))

2021-06-02T12:05:57.441074000
2021-06-02T00:00:00.000000000

2021-06-07T12:14:05.058343000
2021-06-07T00:00:00.000000000

2021-06-10T00:03:23.870450000
2021-06-10T00:00:00.000000000

2021-06-14T12:05:58.373830000
2021-06-14T00:00:00.000000000

2021-06-19T12:14:05.865662000
2021-06-19T00:00:00.000000000

100
100

Now, assign granule id as a non-dimensional coordinate of the xarray dataset:

da.coords['granule_id'] = ('time',granule_coord.data)

#da_pc = da.set_coords({'granule_id':da.granule_id})

#rename for when we store it to use in the comparison notebook
da_pc = da
da_pc

<xarray.DataArray 'stackstac-991fc24c82a49f65803c497bf6948176' (time: 100,
                                                                band: 2,
                                                                y: 1188, x: 869)>
dask.array<fetch_raster_window, shape=(100, 2, 1188, 869), dtype=float64, chunksize=(1, 1, 1024, 869), chunktype=numpy.ndarray>
Coordinates: (12/40)
  * time                                   (time) datetime64[ns] 2021-06-02T1...
    id                                     (time) <U66 'S1A_IW_GRDH_1SDV_2021...
  * band                                   (band) <U2 'vh' 'vv'
  * x                                      (x) float64 6.194e+05 ... 6.281e+05
  * y                                      (y) float64 3.102e+06 ... 3.09e+06
    start_datetime                         (time) <U32 '2021-06-02 12:05:44.9...
    ...                                     ...
    s1:processing_level                    <U1 '1'
    raster:bands                           object {'nodata': -32768, 'data_ty...
    description                            (band) <U173 'Terrain-corrected ga...
    title                                  (band) <U41 'VH: vertical transmit...
    epsg                                   int64 32645
    granule_id                             (time) <U62 'S1A_IW_GRDH_1SDV_2021...
Attributes:
    spec:        RasterSpec(epsg=32645, bounds=(619420.0, 3089780.0, 628110.0...
    crs:         epsg:32645
    transform:   | 10.00, 0.00, 619420.00|\n| 0.00,-10.00, 3101660.00|\n| 0.0...
    resolution:  10.0

Now we’ll store this object to use in a later notebook:

%store da_pc

Stored 'da_pc' (DataArray)

Great, now we have a data cube of Sentinel-1 RTC backscatter imagery with x,y and time dimensions. Take a look at the coordinates and you can see that there is much more information that we can use to query and filter the dataset.

Let’s do a little bit of looking around. We’ll define a function to convert the backscatter pixel values from power to dB scale but we won’t use it yet. This transformation applies a logarithmic scale to the data which makes visualization easier but we do not want to run any summary statistics on the dB data as it will be distorted.

def power_to_db(input_arr):
    return (10*np.log10(np.abs(input_arr)))

What if we only wanted to look at imagery from the VV band?

da_vv = da.sel(band='vv')

We can do the same for VH:

da_vh = da.sel(band='vh')

Next, what if we wanted to look only at imagery taken during ascending or descending passes of the satellite? band is a dimensional coordinate, so we could use xarray’s .sel() method, but orbital direction is a non-dimensional coordinate so we need to approach it a bit differently:

da_asc = da.where(da['sat:orbit_state'] == 'ascending', drop=True)
da_desc = da.where(da['sat:orbit_state'] == 'descending', drop=True)
da_asc

<xarray.DataArray 'stackstac-991fc24c82a49f65803c497bf6948176' (time: 69,
                                                                band: 2,
                                                                y: 1188, x: 869)>
dask.array<where, shape=(69, 2, 1188, 869), dtype=float64, chunksize=(1, 1, 1024, 869), chunktype=numpy.ndarray>
Coordinates: (12/40)
  * time                                   (time) datetime64[ns] 2021-06-02T1...
    id                                     (time) <U66 'S1A_IW_GRDH_1SDV_2021...
  * band                                   (band) <U2 'vh' 'vv'
  * x                                      (x) float64 6.194e+05 ... 6.281e+05
  * y                                      (y) float64 3.102e+06 ... 3.09e+06
    start_datetime                         (time) <U32 '2021-06-02 12:05:44.9...
    ...                                     ...
    s1:processing_level                    <U1 '1'
    raster:bands                           object {'nodata': -32768, 'data_ty...
    description                            (band) <U173 'Terrain-corrected ga...
    title                                  (band) <U41 'VH: vertical transmit...
    epsg                                   int64 32645
    granule_id                             (time) <U62 'S1A_IW_GRDH_1SDV_2021...
Attributes:
    spec:        RasterSpec(epsg=32645, bounds=(619420.0, 3089780.0, 628110.0...
    crs:         epsg:32645
    transform:   | 10.00, 0.00, 619420.00|\n| 0.00,-10.00, 3101660.00|\n| 0.0...
    resolution:  10.0

You can see that there are 69 time steps from the Ascending orbital pass and that all of the same dimensions and coordinates still exist, so you can subset for just the VV data from the ascending passes, or other variables you may be itnerested in.

Let’s take a look at the two polarizations side-by-side. Below, we’ll plot the VV and VH polarizations from the same date next to each other:

fig, axs = plt.subplots(ncols=2, figsize=(16,8))
power_to_db(da_asc.sel(band='vv').isel(time=1)).plot(cmap=plt.cm.Greys_r, ax=axs[0]);
power_to_db(da_asc.sel(band='vv').isel(time=1)).plot(cmap=plt.cm.Greys_r, ax=axs[1]);

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Input In [1], in <cell line: 1>()
----> 1 fig, axs = plt.subplots(ncols=2, figsize=(16,8))
      2 power_to_db(da_asc.sel(band='vv').isel(time=1)).plot(cmap=plt.cm.Greys_r, ax=axs[0]);
      3 power_to_db(da_asc.sel(band='vv').isel(time=1)).plot(cmap=plt.cm.Greys_r, ax=axs[1])

NameError: name 'plt' is not defined

It looks like there is some interesting variability between the two images. What if we wanted to see how these differences persist over time?

Let’s perform a reduction along the x and y dimensions so that we can get a better idea of this data over time rather than a snapshot:

da_asc.sel(band='vv').mean(dim=['x','y'])

<xarray.DataArray 'stackstac-ee77a4d9353bffde92de0e4946cef7e1' (time: 69)>
dask.array<mean_agg-aggregate, shape=(69,), dtype=float64, chunksize=(1,), chunktype=numpy.ndarray>
Coordinates: (12/37)
  * time                                   (time) datetime64[ns] 2021-06-02T1...
    id                                     (time) <U66 'S1A_IW_GRDH_1SDV_2021...
    band                                   <U2 'vv'
    sar:looks_equivalent_number            float64 4.4
    sat:orbit_state                        (time) <U10 'ascending' ... 'ascen...
    sar:product_type                       <U3 'GRD'
    ...                                     ...
    sat:relative_orbit                     (time) int64 114 12 114 ... 12 114 12
    sat:platform_international_designator  <U9 '2014-016A'
    title                                  <U41 'VV: vertical transmit, verti...
    description                            <U173 'Terrain-corrected gamma nau...
    raster:bands                           object {'nodata': -32768, 'data_ty...
    epsg                                   int64 32645

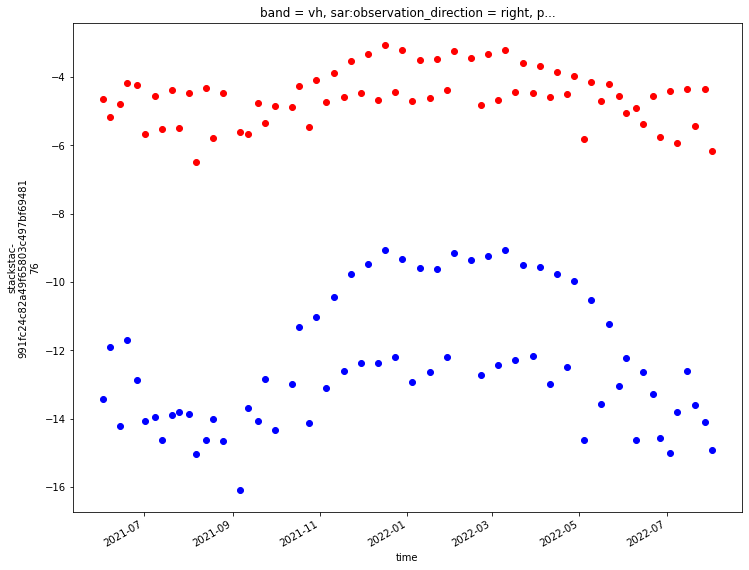

fig, ax = plt.subplots(figsize=(12,9))

power_to_db(da_asc.sel(band='vv').mean(dim=['x','y'])).plot(ax=ax, linestyle='None', marker='o', color='red');
power_to_db(da_asc.sel(band='vh').mean(dim=['x','y'])).plot(ax=ax, linestyle='None', marker='o', color='blue');
_images/PC_RTC_61_0.png

Note

good idea to link to SAR handbook for interpreting polarizations below or no?

Interesting! It looks like there is more variability in the VH band than the VV band. Chapter 2 of the SAR handbook contains information about how polarization impacts radar returns. The above plots are looking only at the ascending passes. Let’s take a look at all of the time steps (ascending + descending). Any effects based on the different viewing geometries of the ascending and descending passes should have been removed during the radiometric terrain correction step.

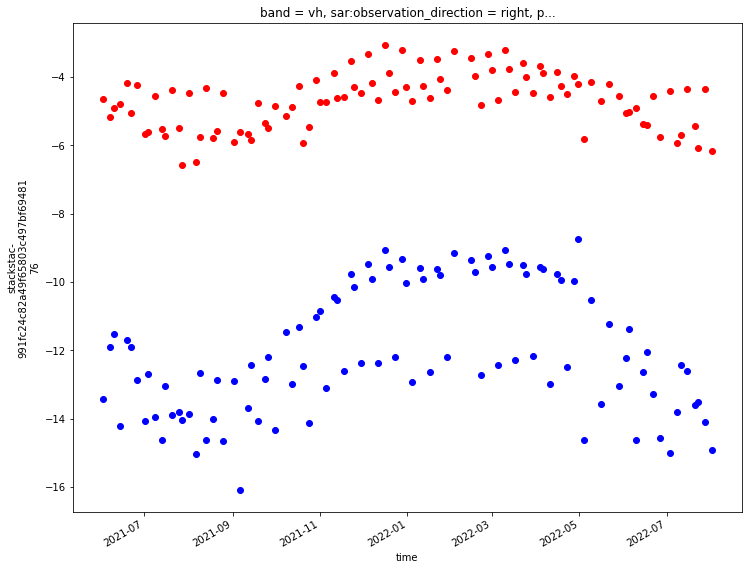

fig, ax = plt.subplots(figsize=(12,9))

power_to_db(da.sel(band='vv').mean(dim=['x','y'])).plot(ax=ax, linestyle='None', marker='o', color='red');
power_to_db(da.sel(band='vh').mean(dim=['x','y'])).plot(ax=ax, linestyle='None', marker='o', color='blue');
_images/PC_RTC_64_0.png

Next, let’s take a look at how backscatter values vary seasonally. To do this we will use xarray’s groupby() and .facetgrid methods.

seasons_gb = da.groupby(da.time.dt.season).mean()
#add the attrs back to the season groupby object
seasons_gb.attrs = da.attrs

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Input In [2], in <cell line: 1>()
----> 1 seasons_gb = da.groupby(da.time.dt.season).mean()
      2 #add the attrs back to the season groupby object
      3 seasons_gb.attrs = da.attrs

NameError: name 'da' is not defined

seasons_gb

<xarray.DataArray 'stackstac-991fc24c82a49f65803c497bf6948176' (season: 4,
                                                                band: 2,
                                                                y: 1188, x: 869)>
dask.array<transpose, shape=(4, 2, 1188, 869), dtype=float64, chunksize=(1, 1, 1024, 869), chunktype=numpy.ndarray>
Coordinates: (12/28)
    sar:observation_direction              <U5 'right'
    platform                               <U11 'SENTINEL-1A'
    proj:epsg                              int64 32645
    sar:center_frequency                   float64 5.405
    sar:looks_range                        int64 5
    sar:resolution_azimuth                 int64 22
    ...                                     ...
  * band                                   (band) <U2 'vh' 'vv'
  * x                                      (x) float64 6.194e+05 ... 6.281e+05
  * y                                      (y) float64 3.102e+06 ... 3.09e+06
    title                                  (band) <U41 'VH: vertical transmit...
    description                            (band) <U173 'Terrain-corrected ga...
  * season                                 (season) object 'DJF' 'JJA' ... 'SON'
Attributes:
    spec:        RasterSpec(epsg=32645, bounds=(619420.0, 3089780.0, 628110.0...
    crs:         epsg:32645
    transform:   | 10.00, 0.00, 619420.00|\n| 0.00,-10.00, 3101660.00|\n| 0.0...
    resolution:  10.0
fg_vv = power_to_db(seasons_gb.sel(band='vv')).plot(col='season', cmap=plt.cm.Greys_r);
_images/PC_RTC_68_0.png
fg_vh = power_to_db(seasons_gb.sel(band='vh')).plot(col='season', cmap=plt.cm.Greys_r);
_images/PC_RTC_69_0.png

Wrap up#

This notebook demonstrated how to access cloud-hosted data from Microsoft Planetary Computer, some basic dataset organization and preliminary exploration and visualization. The following notebook will compare the Planetary Computer dataset to the ASF dataset.
